A Lisp Primer for C and Java Programmers
To the CJ 1 programmer, Lisp appears different. While there are many important differences between CJ and Lisp, there are also some fundamental similarities. This primer presents the major features of Lisp, with examples that will help the CJ programmer sort out what is really new about Lisp and what is similar to or the same as CJ. The primer is a brief, but reasonably complete Lisp introduction. It covers all of Lisp's basic functions, and presents a number of examples on important Lisp programming idioms. If the reader is planning to do major programming in Lisp, a complete Lisp reference manual is in order.
Compared to CJ, the major differences in Lisp are the following:
Lisp's interpretive environment is also different than most CJ programmer's are likely to be familiar with. In contrast to Lisp's syntax, its interpretive environment is typically received very well. This environment allows programs to be executed and tested very easily.
Lisp is a weakly-typed language. Lisp functions and variables do have types, however their types are not explicitly declared. 2 Rather, the type of an object is determined dynamically, as a program runs. This means, for example, that the same variable can hold an integer value at one point during execution, and a list value at some other point. While it is possible for variables to change types radically in a Lisp program, it is not typical. Generally, variables in Lisp are used in much the same way as they are in CJ. Viz., a particular variable is used to hold a particular type of data throughout the execution of a program. The difference in Lisp is that the programmer is not required to declare the type of usage explicitly.
The most significant difference between CJ and Lisp is the last of the four items listed above -- the functional, list-oriented style of Lisp. Recursive functions and lists are the bread and butter of Lisp programming, in much the same way that for-loops and arrays are the bread and butter of CJ. Also, Lisp programs are typically written as collections of many small functions. CJ programmers who use a programming style based on lengthy functions will find that this style is generally unsuited to Lisp.
The C/C++ programmer will notice the conspicuous absence of pointers in Lisp. In this area, the difference between Lisp and C/C++ is similar to the difference between Java and C/C++. Namely, pointers in Lisp and Java are "below the surface". Lisp's list data structure allows the programmer to define all of the structures that can be built with pointers. For the C/C++ programmer, it will take a while to adjust from the pointer mindset to the Lisp list mindset. It will probably take a little less adjustment for the Java programmer, since the below-the-surface treatment of references in Java is closer to the Lisp way of thinking than the explicit-pointer style of C/C++.
Having considered the major differences in between CJ and Lisp, we should also point out some major similarities. These include:
- Overall program structure and scoping rules.
- Function invocation and conditional control constructs.
- An underlying similarity between Lisp lists and CJ's built-in data structures.
This section of the primer presents an introductory scenario of Lisp usage. The point of the introduction is to provide the basic idea of how to use the Lisp interpretive environment. Additional scenario-style examples will be presented throughout the primer, to illustrate both the language and its environment.
All primer examples are based on GNU Common Lisp (GCL), which is the current distribution of the Austin dialect of Kyoto Common Lisp (AKCL). The GCL version is 2.6.6, compiled for UNIX. Three fonts are used in the scenarios, as well in the examples in the remainder of the primer:
Here now is the introductory scenario. % gcl Run gcl from the UNIX prompt
Font Usage Bold Information produced by GCL, such as prompting characters and the results of execution. Plain Information typed in by the user, such as commands to be executed. Italic Explanatory scenario remarks.
Loading avg.l
Finished loading avg.l
T Lisp's response to loading a file consists of
three lines, which inform the user when the
loading starts and when it's finished. The last
response line, consisting of the single
T is the final value of load.
Even if a function does not need to return a
value, it must do so in Lisp. Further, the top-
level read-eval-print loop will always print
the value of a function. Since the load function
does not care about its return value, but needs
one anyway, it chooses the value T, which
stands for true in Lisp.
>(avg '(1 2 3 4 5))
The user calls the just-loaded function with
a list of five numbers.
3 GCL responds with the value computed by the
avg function.
>(avg '(a b c)) The user attempts to call the average
function with non-numeric arguments.
Error: C is not of type NUMBER.
. . .
Broken at +. Type :H for Help.
>>:q GCL responds to the error by printing an
appropriate message and entering the interactive
debugger, signaled by the double caret prompt.
The user responds immediately with the :q
debugger command, which quits the debugger,
returning to the top-level.
>(help) The user calls the general help
function.
Welcome to GNU Common Lisp (GCL for
short).
Here are some functions you should learn first. ...
GCL responds to the (help) function by typing
some general help information, not all of which
is shown here. Further help is provided if the
user follows through the help instructions.
Basically, simple help descriptions are available
for all GCL functions and environment
variables.
>(bye) The function bye exits the GCL environment,
back to the UNIX shell.
This concludes the initial scenario. Additional
scenario-style examples will be used throughout
the primer. Table 1 summarizes the significant
points of this initial scenario, in particular,
how to enter and leave the environment, and how
to return to the top-level when an error occurs.
| Command | Meaning |
| % gcl | Run gcl from the UNIX shell to enter the Lisp environment. |
| >any legal Lisp expression | Typing a legal Lisp expression at the top-level of Lisp results in the evaluation of the expression and the printing of its value. |
| >any erroneous Lisp expression | Typing an erroneous Lisp expression at the top-level of Lisp results in entry to the Lisp debugger. |
| >>:q | The command :q exits the debugger, returning to the top-level of Lisp. |
| >(load "unix-file") | The load function loads a Lisp file and evaluates its contents, as if they had been typed directly at the top level. |
| >(help symbol) | The help function provides information about built-in lisp symbols, which include functions and environment variables. |
| >(bye) | The bye function exits gcl, back to the UNIX shell. |
Table 1: Summary of Important
Lisp Environment Commands.
For details on the use of the Lisp debugger, and other advanced environment commands, the reader should consult a manual.
Lisp has a very simple lexical and syntactic structure. Basically, there are two elemental forms in lisp -- the atom and the list. An atom is one of the following:
For example, the following are legal Lisp atoms:
- an identifier, comprised of one or more printable characters
- an integer or real number
- a double-quoted string
- the constants t and nil
Notice the dash used in hi-there. In Lisp, identifiers may contain most any printable character. This is possible because of the different form of expression syntax used in Lisp, as will be described shortly. The constants t and nil represent the boolean values true and false, respectively. nil also represents the empty list, in addition to boolean false. This overloading of nil is similar to the overloading of 0 in C, where 0 represents both boolean false and the null pointer.10 2.5 abc hi-there "hi there" t nil
A Lisp list is comprised of zero or more elements, enclosed in matching parentheses, where an element is an atom or (recursively) a list. For example, the following are legal lists:
Note that list elements need not be the same type. That is, a list is a heterogeneous collection of elements. Note also the last of the examples. It is a three-element list that is also an executable expression. The commonality of expressions and data in Lisp is a noteworthy feature that we will examine further in upcoming examples.() (a b c) (10 20 30 40) (a (b 10) (c (20 30)) "x") (+ 2 2)
Lisp uses a uniform prefix notation for all expressions and function calls. In CJ, and most other programming languages, built-in expressions use infix notation. The purely prefix notation of Lisp may seem awkward at first to CJ programmers. The following examples compare expressions in Lisp and CJ:
The following is the general format of a Lisp function call, including any expression that uses a built-in operator:
Lisp CJ Remarks (+ a b) a + b Call the built-in addition function with operands a and b. (f 10 20) f(10, 20) Call the function named f, with arguments 10 and 20. (< (+ a b) (- c d)) (a + b) < (c - d) Evaluate (a+b)<(c-d).
(function-name arg1 ... argn)A function call is evaluated as follows:
There is a potential problem with Lisp's ultra-simple syntax. Viz., there is no syntactic difference between a list as a data object and a list as a function call. Consider the following example
Given these definitions, what does the following Lisp form represent?>(defun f (x) ... ) Define a function f F > (defun g (x) ...) Define a function g G
Is it(f (g 10))
(a) A call to function f, with the two-element list argument (g 10)? (b) A call to function f, with an argument that is the result of a call to function g with argument 10?The answer is (b). That is, the default meaning for a plain list form in Lisp is a function call. To obtain the alternate meaning (a) above, we must use the Lisp quote function (usually abbreviated as a single quote character) to indicate that we want to treat a list as a literal datum. I.e., the following form produces meaning (a) above:
which is equivalent to the spelled-out form(f '(g 10))
(f (quote (g 10)))
The quote function is somewhat more general than presented above. That is, quote is used for more than distinguishing a list data object from a function call. Specifically, quote is the general means to prevent evaluation in Lisp. There are three contexts in which Lisp performs evaluation:
In CJ, a distinguished function named main must be supplied as the top-level of program execution. In Lisp, no main function is necessary. Rather, the programmer simply defun's and/or loads as many functions as desired at the top-level of the Lisp interpreter. To start a Lisp program, any defined function can be called.
In terms of overall program structure, Lisp is similar to plain C in that a program is defined as a collection top-level function declarations. Lisp is different from C++ and Java in that there are no class definitions; all functions are declared as top-level entities.
Lisp has the typical set of arithmetic and logical functions found in most programming languages. The following table summarize them:
There are a host of other arithmetic, logical, and string-oriented functions in Common Lisp. Consult a Common Lisp manual for details.
Function Meaning (+ numbers) Return the sum of zero or more numbers. If no arguments are given, return 0. (1+ number) Return number + 1. (- numbers) Return the difference of one or more numbers, obtained by subtracting the second and subsequent argument(s) from the first argument. If one argument is given, the argument is subtracted from 0 (i.e, the numeric negation of the argument is returned). (1- number) Return number - 1. (* numbers) Return the product of zero or more numbers. If no arguments are given, return 1. (/ numbers) Return the quotient of one or more numbers, obtained by dividing the second and subsequent argument(s) into the first argument. If one argument is given, the argument is divided into 1 (i.e, the reciprocal of the argument is returned).
While there are no type declarations in Lisp, Lisp values do have types, and it is often necessary to determine the type of a value. The following table summarizes the important Lisp type predicates.
There are other type predicates in Common Lisp. Consult a manual for details.
Function Meaning (atom expr) Return t if expr is an atom, nil otherwise. (atom nil) returns t. (listp expr) Return t if expr is a list, nil otherwise. (listp nil) returns t. (null expr) Return t if expr is nil, nil otherwise. (numberp expr) Return t if expr is a number, nil otherwise. (stringp expr) Return t if expr is a string, nil otherwise. (functionp expr) Return t if expr is a function (defined with defun), nil otherwise.
Lisp has a flexible conditional expression called cond. It has
features of both if-then-else and the switch statement in CJ. The general form
of cond is the following:
(cond ( (test-expr1) expr1 ... exprj )
. . .
( (test-exprn) expr1 ... exprk )
Lisp has a different type of equality for each type of atomic data, and two forms of equality for lists. The following table summarizes them
The difference between eq and equal is a subtle but important one. Viz., two lists are eq if they are bound to the same object, whereas they are equal if they have the same structure. This concept will be reconsidered after we have seen more about lists and the concept of binding.
Function Meaning = numeric equality string= string equality equal general expression equality (deep equality) eq same-object equality (shallow equality)
The introductory scenario illustrated two simple function declarations. The general format of function declaration in Lisp is:
(defun function-name (formal-parameters) expr1 ... exprn )As an initial example, here is a side-by-side comparison of a simple function declaration in Lisp and CJ:
| Lisp: | CJ: | |
| (defun f (x y) | int f(int x,y) { | |
| (plus x y) | return x + y | |
| ) | } |
As has been noted, there are no explicit type declarations in Lisp. Hence, where CJ declares the return type of the function and the types of the formal parameters, Lisp does not. Evidently, the parameters must be numeric (or a least addable), since the body of the function adds them together. However, the Lisp translator does not enforce any static type requirements on the formal parameters. Any addition errors will be caught at runtime.
Notice the lack of a return statement in the Lisp function definition. This owes to Lisp being an expression language -- i.e., every construct returns a value. In the case of a function definition, the value that the function returns is whatever value its expression body computes. No explicit "return" is necessary. This typically takes some getting used to for CJ programmers.
Further function definitions appear in forthcoming examples, wherein additional observations are made.
As described earlier, the list is the basic data structure in Lisp. Common Lisp does support other structures, including arrays, sequences, and hash tables. These structures provide more efficiency than lists, but no fundamentally new expressive power over lists. Substantial Lisp applications can be and have been implemented using no data structure other than the list.
This primer describes the important list operations, and shows how lists can be easily used to represent the major built-in data structures of CJ -- arrays, structs, and pointer-based structures. The reader should consult a Lisp manual for discussion of the other Lisp data structures.
There are only three fundamental list operations, from which all others can be derived:
The following fundamental relationships exist between the three list primitives:
Operation Meaning car return the first element of a list cdr return everything except the first element of a list cons construct a new list, given an atom and another list
The initial CJ-programmer reaction to these primitives may well be "Is that all?". In a formal sense, the answer is "Yes". That is, any list operation, including operations on complicated structures, can be built upon these three primitives. The practical answer to the question is of course "No". While it is theoretically possible to derive all list operations from these primitives, it would be silly for regular Lisp programmers to do so. Hence, Common Lisp provides a generous library of higher-level list functions, the important ones of which are described in the primer.
- (car (cons X Y)) = X
- (cdr (cons X Y)) = Y
Despite the existence of higher-level functions, the primitive operations are not simply relics. They are still regularly used in even sophisticated programming. In particular, there is a fundamental idiom in Lisp called "tail recursion" that uses a combination of car, cdr, and recursion to iterate through a list. This tail recursion idiom is comparable to array iteration in CJ, using a for- or while-loop. Consider the following initial example:
(defun PrintListElems (l)
(cond ( (not (null l))
(print (car l)) (PrintListElems(cdr l))
)
)
)
void PrintArrayElems(int a[], int n) {
int i;
for (i=0; i<n; i++)
printf("1d", a[i]); 5
}
Using PrintListElems as an example, the tail recursion idiom goes like this:
A second observation regards the need for the additional integer parameter to the CJ function. Since there is no automatic way in C/C++ 6 to test for the end of an array, it is typical for array processing functions to be sent both an array, and the number of array elements to be processed. In the tail-recursive Lisp version, reaching the end of the list is a natural occurrence, and no additional list-length parameter is needed.
Finally, the CJ version of this example only works on arrays of integers, whereas the Lisp version works on lists of any type. The reason is that Lisp's weak typing provides a high degree of function polymorphism that is not available in plain C, and available in a more limited inheritance-based form in C++ and Java. A full discussion of polymorphic functions is beyond the scope of this primer, but its benefits are well known to Java and C++ programmers.
Programming with lists frequently requires composition of basic list operations. For example, (car (cdr L)) is a commonly-used composition. For notational convenience, Lisp provides short-hand compositions, of the form
where the X can be replaced by two, three, or four a's and/or d's. For example, (cadr L) is the short-hand for (car (cdr L)).cXr
The following table summarizes particularly useful built-in list operations.
Function Meaning (append lists) Return the concatenation of zero or more lists. Similar to cons, but cons requires exactly two arguments. (list elements) Return the concatenation of zero or more items, where items can include atoms. Similar to append, but append requires all but the last argument to be a list. (member element list) Return the sublist of list beginning with the first element of list eq to element. (length list) Return the integer length of list. Note that length works on the uppermost level of a list, and does not recursively count the elements of nested lists. E.g., (length '( (a b c) (d ( e f)) )) = 2. (reverse list) Return a list consisting of the elements in reverse order of the given list. (nth n list) Return the nth element of list, with elements numbered from 0 (as in CJ arrays). (nthcdr n list) Return the result of cdring down list n times. (assoc key alist) Return the first pair P in alist such (car P) = key. The general form of an alist is ( (key1 value1) ... (keyn valuen) ). See section 7.2 for further discussion of alists. (sort list) Return the list sorted.

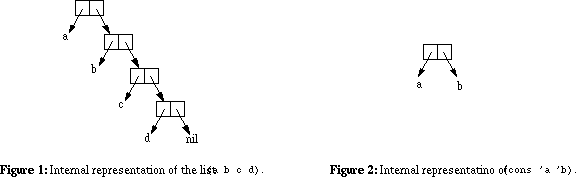

The internal representation of lists within the Lisp translator is a linked binary tree. For example, the list (a b c d) has the internal representation shown in Figure 1. In the figure, notice that the right pointer in the rightmost element points to nil. By convention, this is the standard internal representation of a list, and it corresponds to how a CJ programmer might think of implementing a Lisp-style list. Among other things, the rightmost nil pointer allows any list-based function to find the end of a list reliably. (This is akin to how strings in C/C++ are always terminated with a null character.)
The rationale for the binary representation is that it is a generally efficient low-level representation on most standard computer architectures. In addition, the binary-tree representation has a long history in Lisp, and it has become the internal standard.
There is an important question related to this internal representation. Viz., is it possible to create a binary tree that violates the convention of the rightmost pointer being nil? The answer is yes, and it is done quite easily. Specifically, we use the standard cons function. For example, Figure 1 is the internal representation of (cons 'a 'b).
The next question is, what is the external representation of such a value. I.e., if (cons 'a 'b) is entered at the top-level of Lisp, what is printed as the value? The answer is (a . b). That is, rather than a space separating the elements, a dot is used. Hence, the name for this form of item is a dotted pair. In general, the only way that a dotted pair can be constructed is if we provide an atomic value as the second argument to cons, or to some function that returns the value of a cons.
So, at the internal representation level, what cons actually does is allocate a single binary-tree cell that can be part of a linked tree structure. For this reason, these cells are called cons cells in Lisp terminology, or just cons's for short.
Most of the time, we can get along just fine in Lisp without ever worrying about the dotted-pair level of list representation. Occasionally, we may unintentionally create a dotted pair instead of a list, in which case it is useful to know what Lisp is doing. For example, suppose we want to append an atom onto the end of a list. If we use the cons operation like this:
we obtain the potentially unexpected result(cons '(a b c) 'd))
The reason, again, relates to the precise meaning of cons. Viz., (cons x y) produces the value (x . y). If y is a list, the value is (x . (y)), which is written in normal list notation as (x y), and hence the dot is not a visible part of the value. On the other hand, if y is an atom in (cons x y), then there is no high-level list notation for the result, and Lisp must use dot notation to accurately describe the value.((A B C) . D)
In practice, accidental and even intentional creation of dotted pairs is typically rare in Lisp. In the circumstances where such creations do arise, it is necessary to understand dot notation in order to be clear about the values that Lisp is manipulating.
There is another area in which an understanding of low-level list structure is necessary. This is in the use of the so-called destructive list operations, which are covered in Section 11.5 below.
This section of the primer demonstrates how Lisp's simple list structure can be used to represent all of the common built-in data structures found in modern programming languages. Specifically, we show how to use lists to represent CJ arrays, structs, linked lists, and trees.
Given the built-in nth function, CJ arrays are trivially represented as lists. While nth is a built-in library function, it is instructive to consider its implementation in terms of the list primitives. Here it is:
(defun my-nth (n l)
(cond ( (< n 0) nil )
( (eq n 0) (car l) )
( t (my-nth (- n 1) (cdr l)) )
)
)
A CJ-style struct can be represented by a list with the following general format:
( (field-name1 value1) ... (field-name1 value1) )That is, we use a list of pairs, where each pair represents a struct field.
To make such structures useful, we need a couple functions to access and modify them, called getfield and setfield. Here are their implementations:
; Return the first pair in a struct with the given field-name,
; or nil if there is no such field-name.
;
(defun getfield (field-name struct)
(cond
( (eq struct nil) nil )
( (eq field-name (caar struct)) (car struct) )
( t (getfield field-name (cdr struct)) )
)
)
; Change the value of the first pair with the given field-name
; to the given value. No effect if no such field-name. Return
; the changed struct, without affecting the given struct.
;
(defun setfield (field-name value struct)
(cond ( (null struct) nil )
( (eq field-name (caar struct) )
(cons (cons (caar struct) (list value)) (cdr struct)) )
( t (cons (car struct) (setfield field-name value (cdr struct))) )
)
)
The getfield function uses a straightforward tail recursion, quite similar to the my-nth function we saw earlier. The setfield function is worthy of some additional study, since it is representative of an important Lisp idiom -- non-destructive list modification. The basic strategy of the setfield function is as follows.
An important property of the list operations we have seen thus far is that they are non-destructive. That is, these operations never change the value of any list parameter. Rather, they only access existing lists, or create new lists. The setfield function, as written above, is similarly non- destructive. Rather than change its list (i.e., struct) parameter, it constructs a new list, according to the strategy outlined above.
Lisp does have destructive list operations, that do change list parameters. These operations are discussed in Section 11.5 below.
While this development of CJ-like structs has been instructive, it is in fact largely unnecessary. As might be expected, Lisp has a number of built-in functions to operate on struct-like data structures. The standard terminology used in Lisp for such structures is the alist, which stands for association list. The general form of an alist is:
( (key1 value1) ... (keyn valuen) )That is, alists and our CJ-like structs have the same structure. The built-in assoc function performs precisely the same function as getfield. A destructive, i.e, in-place, form of setfield is considered in Section 12.6.
CJ programmers generally earn their keep by building pointer-based structures
8.
In Lisp, any pointer-based structure can be represented using a list, owing
fundamentally to the fact that lists may recursively contain other lists, to an
arbitrary level of recursion.

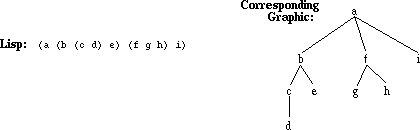

Figure 3: Sample Lisp Representation of an N-Ary Tree.
This primer will not present a formal and exhaustive comparison of recursive lists and pointer-based structures. Rather, we will look at two representative examples of pointer-based structures, by which the reader should be convinced that lists can at least go quite a way towards handling pointer-based structures.
CJ-style singly-linked lists are trivial in Lisp. Viz., they are just plain lists. And, if we consider the underlying dot-notation level, Lisp lists are in fact implemented using pointers, in a way that pointers are typically used to implement lists in CJ.
An n-ary tree can be represented using a recursive list of the following form:
( root subtree1 ... subtreen )For example, Figure 3 shows an example n-ary tree, and its corresponding graphic representation. It is left as an exercise for the reader to design some basic tree access and manipulation functions. Since tree data structures are one place in CJ where recursion is used regularly, the Lisp implementation of tree functions will have some noticeable similarity to tree implementations in CJ, except in Lisp things are a bit simpler.
While it is possible to generalize the n-ary tree structure to cover a wide range of pointer-based structures, there is one important class that cannot be covered easily -- cyclic structures. While it is possible to represent cyclic structures without non-destructive list processing, it is rather cumbersome to do so. Hence, the complete coverage of pointer-based structures relies on the list operations discussed in Section 11.5 below.
1 (defun merge-sort (l) 2 (cond 3 ((null l) nil) 4 ((eq (length l) 1) l) 5 (t (merge-lists (merge-sort (1st-half l)) (merge-sort (2nd-half l)))) 6 ) 7 ) 8 9 (defun merge-lists (l1 l2) 10 (cond ((null l1) l2) 11 (t (merge-lists (cdr l1) (ordered-insert (car l1) l2))) 12 ) 13 ) 14 15 (defun ordered-insert (i l) 16 (cond ((null l) (list i)) 17 ((< i (car l)) (cons i l)) 18 (t (cons (car l) (ordered-insert i (cdr l)))) 19 ) 20 ) 21 22 (defun 1st-half (l) 23 (1st-half1 l (floor (/ (length l) 2))) 24 ) 25 26 (defun 1st-half1 (l n) 27 (cond ((eq n 0) '()) 28 (t (cons (car l) (1st-half1 (cdr l) (- n 1)))) 29 ) 30 ) 31 32 (defun 2nd-half (l) 33 (nthcdr (floor (/ (length l) 2)) l) 34 ) 35 36
Figure 4: Collection of Functions to Perform Merge Sort of a List.
As an illustration of typical list programming style, a multi-function example is shown if Figure 4. The collection of functions performs a merge sort on a list that contains orderable elements, where orderable means they can be compared with the < operator. The lines of the program are numbered for reference in the discussion that follows.
Line 1 defines the topmost function of the collection, merge-sort, that takes one list argument. Lines 2 through 5 are the recursive implementation of merge-sort. Line 3 is a typical end-of-recursion check for an empty list. Line 4 is the base case, where we are trivially sorting a list of length 1, which means we return the list itself. Line 5 is the crux of the merge sort algorithm. Here a two-way recursion is used, in contrast to the one-way tail recursion we have seen in previous list-processing examples. The logic of line 5 should read reasonably easily. Viz., the recursive task is to subdivide the input list into two halves, sort each, and them merge them back together using the auxiliary function merge- lists.
merge-lists is also a fundamental part of the algorithm. It is a tail-recursive function that merges two sorted lists by taking each element of the first list and inserting it in its proper ordered position in the second list. The tail recursion, on line 11, is used to iterate through the elements of the first list. As the iteration takes place, the auxiliary function ordered-insert is called.
ordered-insert is another simple tail-recursive function. Its task is to insert an element in the its proper ordinal position within a list. Its processing is similar to the setfield function discussed earlier. Viz., ordered-insert takes in a single element and a sorted list as inputs. For its return value, it constructs a new list composed of all elements less than the input element, cons'd with the input element, cons'd with the rest of the input list.
Lines 22 through 30 illustrate a typical function/function1 idiom. This form of function pairing is used in cases where a single property is needed to help with further recursive processing. For example, in this case it is easier to to compute the first half of a list if we know how many elements there are in it. Hence, the 1st-half function on lines 22 through 23 computes how many elements are in the half, and passes the work on to 1st- half1. 1st-half1 uses simple recursion to cons up the the first n elements of its given list, where n is provided by 1st- half.
Finally, the one-liner 2nd-half uses the library nthcdr function directly (line 33).
The following table summarizes the basic Lisp I/O functions:
Function Meaning (read [stream]) Read from the given stream, if specified, or from stdin otherwise. (print expr [stream]) Print a newline followed by the value of expr to the given stream, if specified, or to stdout otherwise. (princ expr [stream]) Like print, but without the leading newline. (terpri [stream]) Print a single newline to stream or stdout; (highly anachronistic name). (pprint expr [stream]) "Pretty" print the value of expr to the give stream; "pretty" means format the parenthesized structure of a large value in human-readable form. (open filename) Return a stream (usable in functions above) open on the given filename, which is specified as a string.
As noted earlier, Lisp lists and function calls are syntactically identical. For example, the expression "(+ 2 2)" can be regarded in two equally valid ways: a three-element data list, containing the atoms '+', 2, and 2; a function call that applies the operator '+' to the arguments 2 and 2. In the first form, the list is "data", whereas in the second form it is a "program".
Not only do programs and data look alike in Lisp, they can be manipulated interchangeably. To this end, Lisp provides functions that evaluate a list data object as a program.
A limited form of the programs-as-data concept is available in C/C++ through the use of function pointers, and in Java through the use of reflection. In C/C++, the value of a function can be assigned to a variable or passed as an actual parameter to another function. In Java, functions (a.k.a., methods) can be treated as first-class objects using the facilities of the java.lang.reflect package. If we think of a function pointer (method value) as a "program", then assigning it to a variable is treating it as "data".
Lisp takes the concept of programs-as-data to its logical conclusion. In Lisp, any expression can be treated equally well as program or data. Lisp provides two functions to explicitly evaluate a data object -- eval and apply. These functions take data objects that look like programs and evaluate them as such.
The callable eval function is exactly the same as the eval in Lisp's top-level read-eval-print loop. eval is an extremely powerful function in Lisp, since it effectively puts the power of the full Lisp translator at the disposal of the programmer. We can construct any legal Lisp expression, and then give it to eval to be executed. If we had the equivalent power in CJ, we would be able to build a piece of CJ program at runtime, call the CJ compiler (as a function) to compile it, and then execute the result of the compilation, all while the original program is still running.
As an illustration of the power of eval, suppose we would like to build a simple desk calculator program, where the user could input the name of a calculator operation (such as + or -), followed by the values to be operated on. Here is a function calc that illustrates how eval could be used in such a calculator program.
>(defun calc ()
(print "Input the name of an operation and its two operands:")(terpri)
(eval (list (read) (read) (read))))
>(calc)
Input the name of an operation and its two operands:
+ User input for first read
2 User input for second read
2 User input for third read
4 Result of the call to calc
The reader should consider how the function calc could be written in CJ. It is considerably longer than three lines.
When the full power of eval is not needed, there is a "junior" function named apply. Apply is slightly less powerful than eval, in that apply takes the name of a function and a list of its arguments, and applies the function to them. E.g.,
produces 4.(apply '+ '(2 2))
apply provides a capability similar to that available in C/C++ with invocation through function pointers, and in Java via Method.invoke. However, Lisp's apply is a good deal more powerful than function invocation in CJ, since built-in as well as user-defined functions can be given to apply in the first argument. In CJ, only user-defined function names or function pointer (method) variables can be applied to arguments.
Common Lisp provides two scoping constructs similar to the curly-brace scoping block in CJ. The constructs are let and prog. The let block is described here and prog is defined in the next section on imperative features. The let expression has the following general format:
The square brackets indicate optional constructs, so that the elements of the first let subexpression can be either single vars or (var val) pairs.(let ( [ [(]var1 [val1)] ... [(]varn [valn)] ] ) expr1 ... exprn )
The evaluation of let proceeds as follows:
As an example, here is a side-bye-side comparison of a Lisp let
expression and a comparable CJ block:
| Lisp: | CJ: |
| (let | { |
| ( i | int i; |
| (j 10) | int j = 10; |
| (k 20) ) | int k = 20; |
| expr1 | stmt1 |
| ... | ... |
| exprn | stmtn |
| ) | } |
As explained above, the binding of let variables is carried out in parallel. In particular, this means that no val expression can use the result of a preceding binding in the same let. For example, if variable x has no previous global binding, then the following let is erroneous, since the binding of x is not available for use in binding y:
In some circumstances, it can be useful to have let evaluate the bindings sequentially, rather than in parallel, so that this example would in fact work (i.e., y would be bound to 10). This behavior is available in the let* expression. Specifically, let* evaluates the same as let except that var/val bindings are performed sequentially rather than in parallel. Using let*, the preceding expression is legal, i.e., (let* ( (x 10) (y x) ) ... ).(let ( (x 10) (y x) ) ... )
In the terminology of functional programming, the let expression is a single assignment construct. Without the use of assignment statements within the body of the let expression, the let variables are only bound (i.e., assigned to) a single time, at the beginning of the let. This means that the let construct itself is side-effect free, in contrast to the imperative features of Lisp we are about to discuss.
The Lisp features presented thus far provide all the power that is necessary to write serious Lisp programs. These features comprise the what is called the functional or pure subset of lisp. A detailed discussion on the difference between functional and imperative languages is beyond the scope of this primer. What can be said is that there are a number of compelling advantages to using only, or primarily, Lisp's functional constructs.
Since CJ is an imperative language, the imperative features of Lisp make it a much more "CJ-like" language. In fact, using these imperative features, it is possible to write programs in a style very much like CJ. However, such a style may be counter-productive in many cases. For example, it is frequently more natural to use recursion in Lisp to iterate through the elements of a list, rather than the more CJ-like do loop described below. In any case, it is a mistake for the CJ programmer to cling tightly to the CJ-like imperative features of Lisp, since much of the power and elegance of Lisp will be lost in doing so.
The setq function is the Lisp assignment statement. For example, the following Lisp expression
is equivalent to the CJ assignment statement:(setq x (+ 2 2))
Since variables are not declared in Lisp, the first assignment to a variable serves to declare it, as well as initialize it. In Lisp terminology, the assignment of a value to a variable is called binding. Hence, setq is said to bind the value of its second argument to the variable in its first argument.x = 2 + 2;
A more general form of assignment in Common Lisp is available through the setf function. It is more general since setq must have an atom as its first argument, whereas the first argument to setf can be an arbitrary l-value. That is, setf can be used to assign to any place in a cons cell. Consider the following example:
As can be seen in the resulting value of x, the setf functions results in a permanent (a.k.a., destructive) change to the cadr of x. To accomplish change, setf has accessed the pointer-level representation of the value of x, and changed (destructively) the second element. Given this behavior, setf belongs in the category of destructive list operations, defined below.>(setq x '(a b c)) (A B C) >(setf (cadr x) 10) 10 >X (A 10 C)
There are no explicit declarations for global variables is Lisp. Whenever a variable is bound at the top-level of the Lisp interpreter, it becomes a global variable. Consider the following example.
In function f, x and y are the formal parameters. Just as in CJ, all function parameters have local scope. Hence, as in CJ, the references to x and y within the body of function f are to the parameters, not to the globally bound x and y. Also as in CJ, references within a function to non-locals are references to globally-bound variables 9. Thus, when function f is called in the above example, x is locally bound to 10, y is locally bound to 20, and z is globally bound to 3.>(defun f (x y) (+ x y z)) F >(setq x 1) Bind x at top-level, making it global. 1 >(setq y 2) y is global 2 >(setq z 3) z is global 3 >(f 10 20) 33
In Lisp terminology, the variable z is said to be free in function f. Because there are no explicit declarations in Lisp, there is a subtle but important difference between a free variable in a Lisp and a global variable in CJ. Namely, in Lisp, a free variable need not exist when a function that references it is declared. For example, the function f above is declared before its free variable z is ever bound. Free variables must be bound before a referring function is evaluated. If not, then an "unbound variable" error occurs.
The Lisp prog expression is a more imperative version of the let expression described earlier. Using prog in Lisp, it is possible to write very CJ-like sequences of expressions, including the use of gotos as in C/C++. There are no actual "statements" in Lisp, only expressions, the difference being that an expression always returns a value whereas a statement does not. Given the imperative nature of expressions like setq and go, they can be used effectively like statements within a prog. The general format of a Lisp prog is the following:
(prog ((var1 val1)) ... (varn valn) expr1 ... exprk)The first argument to prog is a possibly empty list of local variable bindings. Before the prog is executed, each vali is bound to the corresponding vari. The scope of these variables is entirely local to the prog. Once the locals are bound, each expri is evaluated.
The CJ analog of Lisp's prog is the compound statement. Here is a side-by-side
example that illustrates the similarity between Lisp prog and CJ compound
block:
| Lisp: | CJ: | |
| (prog | { | |
| ((i 10) | int i = 10; | |
| (j 20.5) | float j = 20.5; | |
| (k "xyz")) | char* k = "xyz" | |
| (setq i (+ i 1)) | i = i + 1; | |
| (setq j (1+ j)) | j += 1; | |
| (print (+ i j)) | printf("1d", i + j); | |
| ) | } |
The default value of a prog expression is nil. It is possible to have a prog return a value other than nil using the Lisp return function. It is important for CJ programmers not to confuse Lisp's return with CJ's. The two are similar, but not identical. Specifically, a return in Lisp can only appear within an enclosing prog, not in a general function body. When Lisp evaluates (return expr), it terminates the prog within which it is contained, and the entire prog returns the value of the return expr. Lisp return's will look much like CJ return's, if a function body consists of just a single prog. However, the Lisp return returns from a prog NOT from a function.
The final prog-related function is go, which acts like a statement in C/C++. A simple example easily illustrates the use of go:
(defun read-eval-print-loop ()
(prog ()
loop
(princ ">")
(print (eval (read)))
(terpri)
(go loop)
)
)
There is a very CJ-like iteration function in the imperative Lisp trick bag. It is called do, and it is a lot like CJ's for loop. The general format of do is:
(do ((var1 val1 rep1) ... (varn valn repn)) exit-clause expr1 ... exprk)Each (vari vali repi) triple is similar to the semi-colon separated control expression of a CJ for loop. When the do is initially started, each vari is initialized to the corresponding vali.
After the vari initialization, the exit-clause is examined. It is of the general form:
([test [exit1 ... exitm]])If the entire exit clause is nil, then the do terminates immediately. Otherwise, the test expression is evaluated, as an until test. That is, if test is non-nil, then the do is ready to terminate. Just prior to termination, the exitp expressions are executed in order, and the value of the last one of these is the return value of the do.
If the until test is nil, then the body of the do is executed, where the body consists of the exprj. When the body completes one cycle of execution, each vari is rebound to the corresponding repi, and the test cycle of the preceding paragraph is repeated.

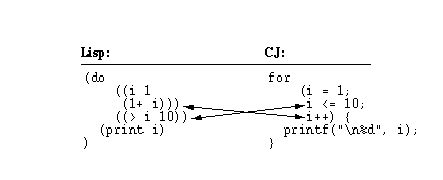

Here is a side-by-side comparison of a Lisp do and a comparable CJ for loop:
Several sections above alluded to the so-called "destructive" list operations. Simply put, these operations provide direct access to the internal pointer- based implementation of Lisp lists. The two primitive list destructors are rplaca and rplacd, which stand for "replace car" and "replace cdr", respectively. Here is a summary of these two, as well as some higher- level destructive operations:
Here is a telling scenario of what can be done with these destructive operations:
Function Meaning (rplaca cons-cell expr) Destructively replace the car of the cons-cell with expr and return the result. (rplacd cons-cell expr) Destructively replace the cdr of the cons-cell with expr and return he result. (nconc lists) Destructively change the last cons-cell of each of the given lists to point to the next of the given lists. nconc is the destructive version of append. (setf cons-cell expr) Destructively change the contents of the given cons-cell to the given expr, and return the value of expr.
>(setq x-safe '(a b c)) (A B C) >(setq y-safe x-safe) (A B C) >(setq x-safe (cons 'x (cdr x-safe))) (X B C) >y-safe Non-destructive change to x-safe does not affect y-safe. (A B C) >(setq x-unsafe '(a b c)) (A B C) >(setq y-unsafe x-unsafe) (A B C) >(rplaca x-unsafe 'x) (X B C) >y-unsafe Destructive change to x-unsafe does effect y-unsafe (X B C) >(setf (cadr y-unsafe) 'y) Another destructive change Y >x-unsafe (X Y C) >y-unsafe (X Y C)
Destructive list operations make it possible to achieve call-by-reference parameter passing, even though the Lisp function evaluation mechanism only supports call-by-value. Any list passed to a function can be effectively treated as a call-by-reference parameter by performing a destructive operation on it.
As an illustrative example, here is an alternative implementation of the setfield function, defined earlier in the primer. Here it is called dsetfield, to indicate its destructive semantics.
(defun dsetfield (field-name value struct)
(setf (cdr (assoc field-name struct)) (list value)))
In order to cope effectively with the power of destructive list operations, we must fully understand how Lisp manages its list structures at the pointer level. Specifically, we must understand:
Whenever a list value is bound to a variable or formal parameter, the binding is via pointer copy. The process of binding itself never creates new cons cells. For example, in an assignment such as
it is the creation of the literal list value that allocates the cons cells. What is assigned to x is a pointer to the list containing a, b, and c. Whenever the list value of one variable is assigned to another variable, it is the pointer value that is assigned, not a copy of the list. For example, variables x, y, and z all point to the same list after the following sequence of assignments is evaluated:(setq x '(a b c))
(setq x '(a b c)) (setq y x) (setq z y)
All list access functions, whether destructive or non-destructive, access lists via pointer manipulation, and they do not allocate new cons cells. The critical distinction between destructive versus non-destructive functions is that a non-destructive function never changes the value of a pointer inside a cons cell, whereas a destructive function does.
To illustrate the above points in a succinct example, consider the following scenario:
>(setq x '(a b c))
(A B C)
>(defun f (i j k)
(setf (cdddr k) (cdr j))
(setf (cadr j) i)
(setf (cdr j) k)
(setq z k)
nil
)
F
>(f x (cdr x) '(a b c))
NIL
Figure 5: Three Snapshots of the List Space.
An important consequence of Lisp's internal pointer manipulation is that non- destructive operations are more efficient than they might appear. For example, one invocation of cons only takes enough time to allocate a single two-element memory block, and copy two pointers into it. Hence, a cons operation such as this
takes the same (small) amount of time as any other cons operation. This is because cons, and its non-destructive derivatives, do not copy all of their arguments to make new lists, just pointers to the arguments.(cons huge-list1 huge-list2)
While some Lisp programmers find destructive list operations indispensable, many others utterly decry their use. For example, Robert Wilensky (author of the widely-used Common LISPcraft) does not introduce destructive list operations until page 265 of his book, and he does so under the subheading "The Evil of rplaca and rplacd".
Having seen Lisp's imperative constructs, and the destructive list operations in particular, the die-hard CJ hack may well be thinking "At last, something in Lisp I can sink my teeth into!". The most appropriate response to this is "You better have strong teeth". C/C++ die-hards are well acquainted with the havoc that the misuse of pointers can wreak. In Java, reference misuse wreaks less havoc than is possible in C, but Java programmer's must still be mindful of the side effects caused by changing values through references. Even though Java's pointer manipulation is less syntactically explicit than in C/C++, Java's pointer-based processing is still fundamentally destructive in the Lisp sense.
The destructive list operations in Lisp totally expose the pointer-level representation of Lisp lists. The indiscriminant use of these operations can easily reduce the design, implementation, and debugging of Lisp programs to the awfulest levels of CJ. This is indeed a sad way to use an otherwise lovely functional language.
5 The printf function is C's version of System.out.println in Java. The first argument to printf is a formating string, the details of which are not important here.
6 Java, of course, provides the built-in array length operator.
8 reference-based structures in Java terminology
