Overview of the SpecL
Formal Modeling and Specification Language

This document summarizes a formal modeling and specification language (SpecL). The material introduced here is covered in additional detail in the SpecL Reference Manual and the Formal Specification Primer.

SpecL is a hybrid of features found in other modeling and specification languages. The basic features for specifying objects and operations are found in a long historical line of modeling languages. These include SADT (Structured Analysis and Design Technique) [Ross 77], PSL (Problem Statement Language) [Teichroew 77], RMF (Requirements Modeling Framework) [Greenspan 82], OMT (Object Modeling Technique) [Rumbaugh 91], and most recently UML (Unified Modeling Language) [Rumbaugh 99].

The purpose of SpecL is to describe precisely the external structure of the objects and operations in a software system. While languages such as UML have useful features for structuring a specification, they are not fully formal. SpecL includes features for formal specification, as found in such languages as Larch [Guttag 85], OBJ [Goguen 88], and OCL (Object Constraint Language). An SpecL specification is typically developed in sequences of refinements, where definitions of objects and operations are gradually made more formal.

In SpecL, a specification consists of two parts: (1) an object- oriented model, and (2) a operation-oriented model. Dividing a specification into these two parts promotes the concept of multiple views of the same system. One view focuses on the system from the perspective of the objects (i.e., data), the other from the perspective of the operations (i.e., functions). Neither view is the correct one -- both convey aspects of the same system in different ways. Depending on the natural orientation of the system being specified, one form of view may be the more natural.

Whichever is the more natural view, a requirements specification should always contain both. In this way, the two views provide a form of cross checking on specification consistency and completeness. Something that may have been overlooked in the object-oriented view may show up naturally in the operation- oriented view, and vice versa. When complete, the pair of views provide separate parts of a mutually consistent specification of a system.

2. Underlying Principles

SpecL, and similar languages such as UML, share some common underlying principles. The principles are:

1. Object/Operation Model -- a specification is comprised fundamentally of two forms of entity: objects and operations; these entities have well-defined relations to one another.
2. Hierarchy -- the primary relation between entities of the same type is hierarchy; that is, an entity is composed hierarchically of components, which may in turn be further hierarchically decomposed.
3. Input/Output Relationships -- the primary relation between objects and operations is input/output; specifically, operations take objects as inputs and produce objects as outputs.
4. Attribute/Value Pairs -- in addition to relations to other entities, an entity may have other general attributes that further describe its properties and characteristics.
5. Composition Primitives -- when an entity is decomposed into components, specific forms of composition are used; the forms in SpecL are:


   1. and composition: an entity is composed as a heterogeneous collection of components

   2. or composition: an entity is composed as a selected one of a heterogeneous collection of components

   3. repetitive composition: an entity is composed as a homogeneous collection of zero or more components

   4. functional composition: an object is composed as a function from input objects to output objects

   5. recursive -- an entity may contain itself as a component.
6. Class/Subclass/Instance Composition -- a secondary form of hierarchical relation is that of class/instance; an entity class defines a generic entity template; an entity subclass or instance specializes the generic class by adding additional attributes.
7. Object/Operation Duality -- the composition and relational forms apply equally to both objects and operations; that is, both objects and operations can be decomposed hierarchically, with general attribute/value pairs, and defined as classes.
8. Strong Typing -- all objects in a specification define a formal type; SpecL formulas and expressions are type checked to confirm that object names are used in type-correct contexts.
9. Functional Operations -- all operations are fully functional and side effect free; an operation may only access explicit input objects, and may effect change only through explicit output objects.
10. Declarative Specification -- a specification declares structure and function without specifying operational details.

An object is specified in a fixed format showing its components and other attributes. The general form is as follows:

object name [=]
    components: composition expression defining subobjects;
    [operations: list of applicable operations;]
    [equations: formal equational specification;]
    [description: comment or entity name;]
    [user-defined attributes: comment or entity name;]
end [name];

An operation specification is much like an object specification. The general form is as follows:

operation name
    [components: composition expression defining suboperations ;]
    inputs: list of objects;
    outputs: list of objects;
    [precondition: formal predicate on inputs;]
    [postcondition: formal predicate on inputs and outputs;]
    [description: comment or entity name;]
    [user-defined attributes: comment or entity name;]
end [name];

An object or operation specifies a class from which other objects or may inherit. This form of inheritance is conceptually the same as in object-oriented programming languages. For example,

In the examples so far, the components of an entity have been shown as simple names. E.g., ScheduledItem components are Title and StartDate and EndDate. A more detailed way to specify components is to use a name:type pair. For example,

object ScheduledItem
    components: t:Title and sd:StartDate and ed:EndDate;
    ...

Component names are used to refer to object components in formal preconditions and postconditions. Examples of these uses appear in the Reference Manual and Primer.

5.3. Modules

For large specifications, it can be convenient to organize object and operation definitions into modules. The basic format of an SpecL module is the following:

module name;
    [imports]
    [exports]
    [attribute definitions]
    [entity definitions|
    [formal definitions]
end [name];

This example illustrates the use of the module imports, exports, and the placement of object and operation definitions. Examples of the other module declarations (user-defined attributes and formal definitions) are given in the SpecL Reference Manual.

6. Tabular and Graphical Notation

Models specified in SpecL can be depicted in tabular and graphical forms. The tabular form is called a "data dictionary", that lists the major attributes of objects and operations. Data dictionaries are a very well established format that have been used in software engineering for many years.

The graphical notation uses concepts from the Unified Modeling Language (UML) and some other commonly used graphical forms. UML is the most recent in a long line of graphical modeling notations that date back as far as the mid-70s with SADT [Ross 77] and PSL/PSA [Teichroew 77]. The development of UML was a collaborative effort of primarily commercial organizations, led by the Rationale Corporation. The goal for UML has been to develop a standard graphical modeling notation. UML is a consolidation of concepts used in earlier notations, in particular the Object Modeling Technique (OMT) [Rumbaugh 91].

UML has a number of features that are not used in the notation described here. In addition, UML is missing certain features that are convenient for diagramming SpecL models, in particular dataflow diagrams. Where a feature is available in UML, the same feature is retained here. Where UML is missing a useful feature, a previously existing standard is used in such a way as not to conflict with UML features. Also of note are some terminology differences between the notation presented here and UML. In particular, the terms "object", "component", and "composition" are used here as they relate to SpecL. These terms are used differently in standard UML.

6.1. Data Dictionaries

Data dictionaries are common notation for describing objects. A data dictionary shows objects, their components, and descriptions. Figure 1 shows the data dictionary format for the object definitions given as examples in Sections 2 through 5 above.

As commonly used, data dictionaries are typically a less formal notation than a complete language such as SpecL. Therefore the details of how data dictionaries are used in practice can vary among different authors. In some uses, there is no separate components column, so that everything about the object is described in the prose description column. Also, the exact notation used in components definitions may vary. For example, some authors use "+" instead of "and" for defining tuples.

There is a tool for SpecL specifications that automatically generates data dictionaries in HTML form. The SpecL-to-dictionary generator is called "specldoc". It is described in the documentation for the SpecL translation tools.

6.2. Class Diagrams

A class diagram depicts the composition and inheritance relationships among SpecL objects. It can also show the operations that are associated with an object, where "associated with" means those operations listed in an object's operations attribute. The elements of a class diagram are the following:

1. three-part boxes, labeled at the top with an object name
   1. component names appear immediately below the object name in the three-part box
   2. operations names follow the component names in the three-part box
2. one-part boxes, labeled inside with the object name only
3. ovals (or circles) labeled inside with the name of an operation
4. connecting edges between object boxes, with three forms of augmentation:
   1. a hollow triangle, depicting an inheritance relation
   2. a hollow diamond, depicting a composition relation
   3. a '*' or an integer next to a hollow diamond, indicating multiplicity of composition

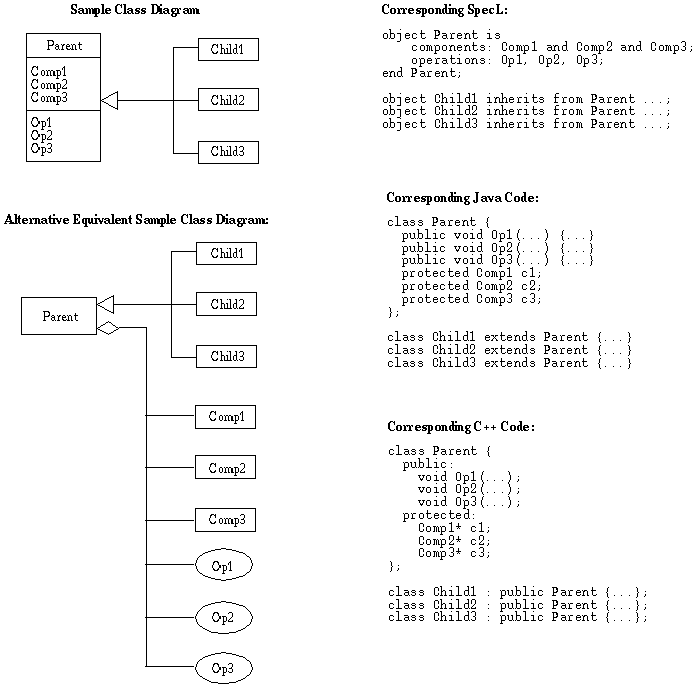

Figure 2 shows the general structure. Two equivalent graphical forms are shown on the left, with the corresponding textual form on the right.

The diagram on the top left of the figure shows components and operations using the three-part box notation. The diagram on the bottom left, labeled "Alternative Equivalent", shows the equivalent relations using the hollow diamond notation. To illustrate how modeling concepts are common in a variety of languages and notations, textual forms are shown in Java and C++, as well as in SpecL. All five forms in the figure (two diagram forms, three textual forms) have the same abstract meaning.

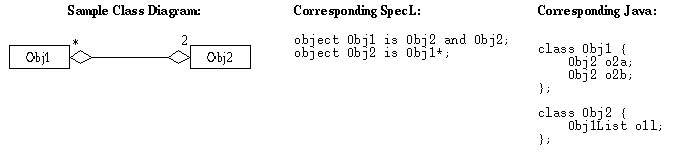

Figure 3 shows the basic form of multiplicity annotations, as well as two-way containment.

The three-part notation for composition versus the hollow diamond notation are two equivalent forms that have the same meaning. Composition can be shown in either way separately, or with the two forms combined in a single diagram. When the two forms are used together, components should not be repeated. That is, each object component should be shown in the second part of a three-part box or shown as a hollow diamond attachment, but not shown in both ways in the same diagram. A UML convention is to show atomic components in the second part of a three-part box and non-atomic components as hollow-diamond attachments. In SpecL, atomic components are integer, real, string, boolean, and opaque objects. An opaque object has no components at all, just a name. It is conceptually comparable to an enumeration literal in common programming languages.

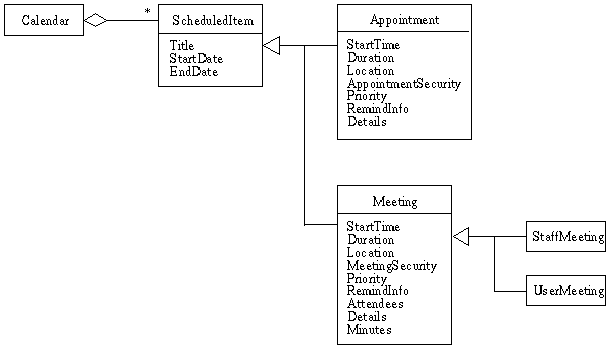

Figure 4 shows an example class diagram depicting the object definitions given as SpecL examples in Sections 2 through 5 above.

A dataflow diagram depicts the flow of objects between operations in a specification. Elements are:

1. circular or oval graph nodes, depicting operations
2. directed interconnecting edges, depicting operation inputs and outputs
3. graph levels, depicting operation hierarchy

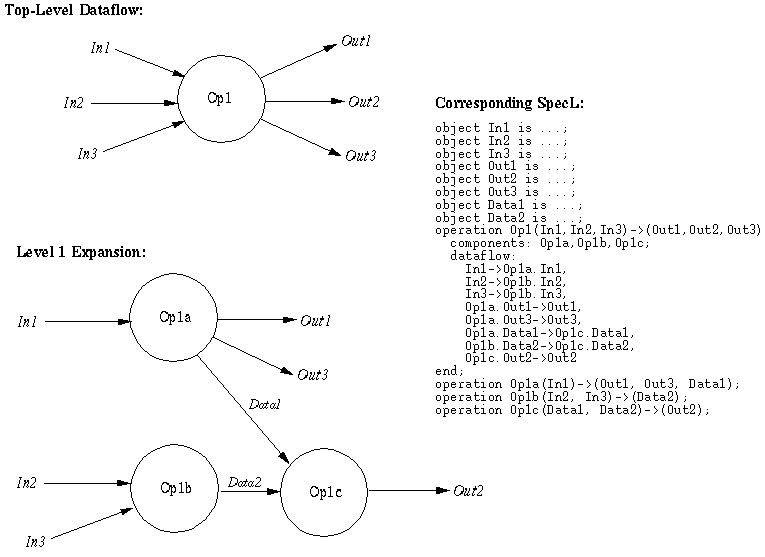

Figure 5 shows the general structure.

A dataflow diagram is only a possible depiction of flow since the interconnections actually show more information than is in the abstract SpecL specification. That is, the specification defines the input and output types of each operation, but does not require that they be interconnected as shown in any particular dataflow diagram.

6.4. Package Diagrams

A package diagram is for large-grain modeling, showing the relationship between modules. Elements of a package diagram are the following:

1. folder-shaped rectangles, labeled inside with the name of a module
2. directed interconnection lines, abstractly depicting communication between modules
   1. line labels in regular font are object names, depicting data communication
   2. line labels in italic font are operation names, depicting functional communication

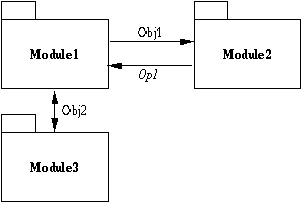

Figure 6 shows the general structure.

The interconnection abstractly depicts communication in that the diagram does not show the details of the communication. For data communication, the package diagram indicates that one module sends data to another, without indicating the operation that produces the data. With functional communication, only the name of the operation is given without indicating the details of input and output.

7. Conclusion

SpecL is a formal and mechanically checkable language for requirements modeling and formal specification. It is based on principles found in many requirements specification notations, both graphical and textual. Independent of syntactic details, virtually all notations share a common set of underlying principles, most notably object modeling, operation modeling, and hierarchical model decomposition.

References

[Goguen 88] J. A. Goguen and T. N. Winkler, "Introducing OBJ3", SRI International Technical Report, Palo Alto, CA, August 1988.

[Greenspan 82] S.J. Greenspan, J. Mylopoulos, and A Borgida, "Capturing More World Knowledge in the Requirements Specification", Proceedings of the Sixth International Conference on Software Engineering, 1982.

[Guttag 85] J. Guttag, J. J. Horning and J. M. Wing, "The Larch Family of Specification Languages", IEEE Software, May 1985.

[Rumbaugh 91] J. Rumbaugh, M. Blaha, W. Premerlani, F. Eddy, and W. Lorensen, "Object-Oriented Modeling and Design", Prentice-Hall, 1991.

[Rumbaugh 99] Rumbaugh J., I. Jacobsen, G. Booch, "UML Reference Manual", Addison-Wesley.

[Ross 77] D. T. Ross, "Structured Analysis (SA): A Language for Communicating Ideas", IEEE Transactions on Software Engineering, January 1977.

[Teichroew 77] D. Teichroew and E. A. Hershey III, "PSL/PSA: A Computer-Aided Technique for Structured Documentation and Analysis of Information Processing Systems", IEEE Transactions on Software Engineering, January 1977.
