CSc 305 Project 1

Minesweeper

Enhance the GUIskeleton.java from lab #1 to play  a version of Minesweeper.

Mines Board

The goal of Minesweeper is to find all the hidden bombs in a two dimensional grid. At the start of the game the grid is completely filled with hidden squares.  Click on a square to reveal the contents.  If you click on a square containing a bomb, you lose.  The goal is to uncover all the squares that don't contain a bomb as fast as possible.

When you click on a square which doesn't have a bomb, numbers in squares next to unrevealed squares will indicate how many bombs are adjacent to it. For example, if an empty square has a 2 in it, there are 2 bombs adjacent to it.

When you click on an empty square that has no bombs next to it, all the adjacent empty squares are revealed.

A right mouse button click will toggle a "flag" image on and off to allow the player to mark squares that are suspected bombs.

The status panel displays the number of moves made, score, and time elapsed in minutes and seconds. (You may label them whatever you like, and change the order if you prefer).   Score is actually the number of bombs minus the number of flagged squares. At the beginning of a game it is just the number of bombs. The number will update as you mark and unmark squares.

There are 5000 possible boards. The game begins with a randomly selected board. The board is 10x10 and has 13 bombs.
The Restart button begins the same game over again.
New Game starts a different game (the next sequential game number).
Select Game lets you select a game by number.
Scores opens a dialog showing all the saved winning times.
high scores

A hidden "About" button (Alt-A) shows the software version number and the current game number.
Mines About
A hidden "Cheat" button (Alt-C) reveals the entire game board (but doesn't win the game).
Note these must be buttons. Do not use a keylistener. Use a button mnemonic.
A hidden "Easy" button (Alt-E) creates a board with only one bomb in the upper left corner.

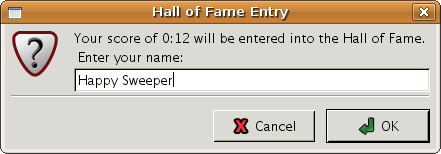

If the player wins the game a popup dialog should allow the player to save their time.
Mines Dialog

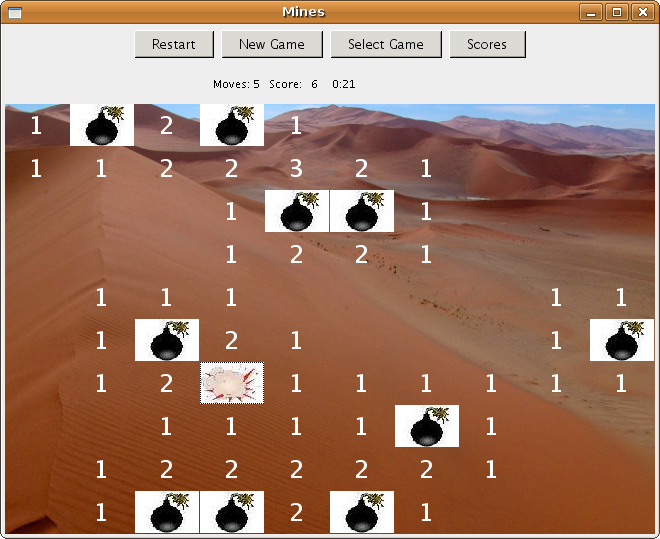

If the player loses, the squares are all revealed.
Mines Lose
Note that the bomb that was clicked on is shown as exploded.

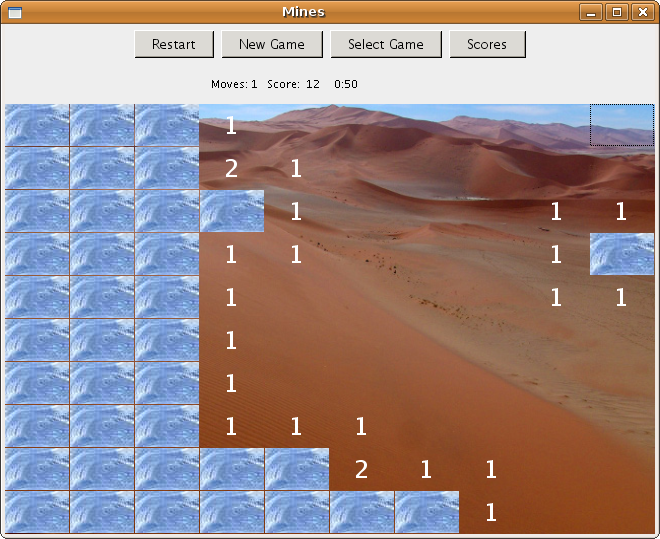

When you click an empty cell, it recursively reveals all the other adjacent empty cells, until it gets to one that is numbered. For example, the screenshot below shows a board after only one move - clicking on the upper right corner (an "empty" cell).
reveal
Note that a click on a cell that contains a number does NOT perform this recursive reveal action.

Resources

Minesweeper piece images:  MinesImages.zip  You may create your own images if you prefer.
Minesweeper background:  Minesbkgd.jpg
Tutorial on Working with Icons


Feature sets

A - Implement all the features described above.
B - No background image. No elapsed time display.   No scores button.  Winning the game just displays a "you won" message but  no dialog. About and Cheat buttons are "hidden" (or very small).
C - Basic game play. About and Cheat buttons don't have to be hidden. Doesn't do recursive reveal.  Only one square is revealed for each click.  No flags.

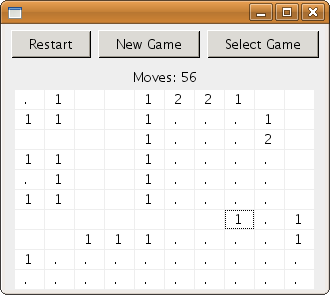

No graphics.  Just text in the cells, for example:

text
covered square
 .
count
 1- 8
bomb
 X
exploded bomb
*

Testing
Here is the Test Plan.

Alternate Problems

If you aren't fond of minesweeper you may propose an alternate two-dimensional board game to the instructor.  Create a requirements document for your proposed game like the one above and submit by email to the instructor by 5pm Fri jan 7.

Assignment Submission - Due Thu Jan 14 11:59pm

  1. Make sure your source code compiles with no errors and passes CheckStyle. (You're allowed 5 violations per 1000 lines of code.)
  2. Use handin to submit your source code electronically (see below).
  3. Print your source code using 10 point monospaced font.  You might have multiple classes; place the classes in alphabetical order.  Write your name at the top. After your name, write which feature set you implemented: A, B, or C.
  4. Submit your work to the table in front of the classroom at the next class meeting after the due date.

Handing in Your Source Code Electronically
       handin  graderjd  Project1  Minesweeper.zip


Handing in an executable JAR file

 If you are not fluent with creating an executable JAR file, read the following five sections from the tutorial Lesson: Packaging Programs in JAR Files. It will take about 15 minutes.
  1. Creating a JAR File
  2. Running JAR files as Applications
  3. Understanding the Default Manifest
  4. Modifying a Manifest File
  5. Setting an Application's Entry Point

  6. Then create an executable JAR file named Mines.jar that does not contain any source code.
  7. Be sure your application launches properly with this command: java -jar Mines.jar.
  8. Follow the same steps as above to submit your JAR file using the handin command.


2-d Mahjongg solitaire
text
MahJongg is a computer solitaire game based on a classic board game which uses ceramic tiles as playing pieces. At the start of the game the tiles are randomly placed on the board. The object is to remove all the tiles from the board, given certain restrictions on the order in which tiles can be removed.
There are three suits of tiles: Bamboo, Dots, Characters. There are four tiles of each rank from 1 to 7. Tiles are removed from the board in pairs. A pair consists of an exact match, i.e. two tiles that are exactly alike. This means that you must match a tile to another that is exactly the same. For example a Bamboo 1 matches another Bamboo 1 but does not match a Bamboo 3 or a Dot 1.
Tiles are always removed in pairs and can only be removed from the left or the right edges of the board. Any tile that is not on a left or right edge is considered blocked and cannot be removed.
Use the computer mouse to click on a tile. If it is removable, it will be marked with a pink border (or other visual indicator). Click on the matching tile and both will be removed from the board.
The status panel displays the number of tiles remaining on the board, and time elapsed in minutes and seconds. The game is won by clearing all the tiles from the board. If the player wins the game a popup dialog should allow the player to save their time. The game is lost if there are still tiles on the board but no legal moves are available.
Hint Button. Clicking the hint button will provide a visual indication of a pair of tiles that are removable.
Mahjongg tile images:  mahjonggtiles.zip

Submit Mahjongg.zip and Mahjongg.jar as in the directions above.
Document History
1/9/2010 Revised Mahjongg board image to have 12 columns x 8 rows. Finished directions for submitting executable JAR. Fixed broken link to images.
