You must work individually.
Please download the code for the lab and go over the code.
cp
~zwood/www/teaching/csc471/2017F/L01/L01.zip .
Over the next 2 weeks, we will be writing a program to render (draw) an
indexed face set (aka polygonal mesh of triangles) as an image via software rasterization (i.e. the code will be entirely written in
C/C++ with no graphic libraries. The software will render a static scene). In
general the required steps for the program will be:
We will discuss the window coordinate transform, barycentric
coordinates and z-buffers in the next few lectures.
For today, we will just be playing with the provided image code to build
up functionality that will be useful in your rasterizer.
We'll be using g++ and CMake
throughout this quarter. We'll also be using "out
of source" builds.
If you're using the lab machines, g++ and CMake
are already installed. To compile and run your code from the command line,
follow these steps from the folder containing CMakeLists.txt
.
> mkdir build
> cd build
> cmake ..
> make -j4
> ./Lab01
You should see some output on the console. Look at main.cpp
to see what the command line arguments mean. Once you enter the correct
arguments, you should see the following output file in the build directory.
If you're using your own computer, follow the steps below to install g++
and CMake. Otherwise, you can skip to Step 2.
Linux
Use a package manager to download cmake. For
example, with ubuntu,
> sudo apt-get update
> sudo apt-get g++
> sudo apt-get install cmake
Follow the steps above to build and run the program from the command
line.
OSX
You can use homebrew/macports or install these
manually.
Make sure the commands g++
and cmake
work from the command prompt.
If you want to use Xcode as your IDE, then do
the following from the folder containing CMakeLists.txt
.
> mkdir build
> cd build
> cmake -G Xcode ..
This will generate Lab01.xcodeproj
project
that you can open with Xcode.
Lab01
by going to Product -> Scheme -> Lab00. Then
click on the play button or press Command+R to
run the application.Windows
You'll need to download these manually.
Make sure the command cmake
works from the command prompt. On Windows, you'll be using Visual Studio as the
IDE. Run the following from the folder containing CMakeLists.txt
.
to generate a solution file.
> mkdir build
> cd build
> cmake ..
By default on Windows, CMake will generate a
Visual Studio solution file, Lab01.sln
, which you
can open by double-clicking. If you get a version mismatch, you may have to
specify your visual studio version, for example:
> cmake -G "Visual Studio 14 2015" ..
Other versions of Visual Studio are listed on the CMake
page (http://cmake.org/cmake/help/latest/manual/cmake-generators.7.html).
Lab01
in the project explorer and then click on "Set as
Startup Project." Then press F7 (Build Solution) and then F5 (Start
Debugging).Lab01
in the project explorer and then click on
"Properties" and then click on "Debugging."Starting with the provided code, make the list of command line arguments
take the following options (in exactly this order)
Usage: Lab01
filename width height vax vay
vbx vby vcx
vcy
Thus for example – a valid program execution would look like:
./Lab01 out.png 200 200 2 2 50 60 150 170
For today only, we will assume the triangle's vertices are in "window
coordinates." In other words, the data values are integer values that
range from 0
to the value of width-1
of the window/image (or 0
to the height-1
value of the window/image). You may choose to have the vertices be 2D (although
for the Assignment 1, they will need to be 3D). You will need to design a data
structure to represent the triangle and its vertices. Draw the three vertices
into the image, using three calls to image->setPixel()
.
The bounding box of the triangle is the box with the extents that will
exactly bound that triangle. You will need to design a data structure to
represent the bounding box. At minimum such a structure needs xmin, xmax, ymin,
ymax. Using the provided image code, modify the color
of all the pixels in the bounding box to be a color of your choice (which is
different then the background).

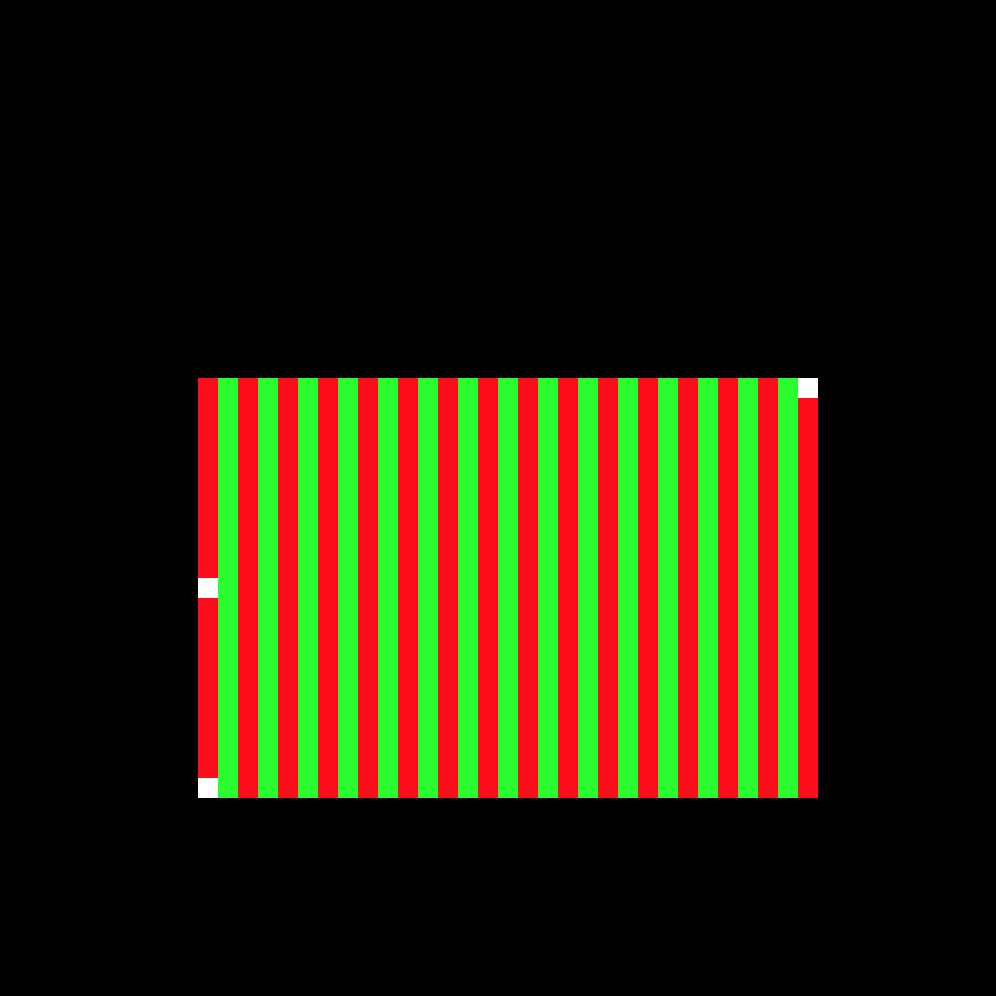

You can also try a pattern based on the row and/or column. The three
vertices and the bounding box should look something like this:
Write out the modified image and confirm your code is working as
expected. Be sure to try various test cases with vertex positions in various
orders. Make sure the bounding box completely covers the three vertices.
For lab credit you will need to demonstrate your working code on several
vertex tuples specified by the instructor or the TA.
