The commands available on the File and Edit menus provide an interface between the Rolodex Tool and the underlying operating environment, including its file system. Different operating environments have potentially varying rules for the processing of these commands. The requirements here are generic and operating-environment independent.
The Rolodex Tool can be invoked both with and without a Rolodex file. Without a file, the tool begins execution with an empty Rolodex workspace containing no cards. The banner of the display window indicates there is no open file, as shown in Figure 1. When invoked with an initial file, the tool begins execution with a workspace containing the cards of the specified file. The banner of the display window indicates the open file by name, as shown for example in Figure 7. The tool may not be open with more than one file at one time.
Depending on the operating environment in which the tool is installed, it can be invoked by name from a command line or by some other means such as operating system command menu, Rolodex tool icon, or Rolodex file icon. The means to specify an initial file is also dependent on the operating environment. Two typical means are typing a file name on the command line, or clicking on the icon of a Rolodex file.
The New command creates a new empty rolodex. When the user selects
the New command from the File menu, the system first checks
if the currently active workspace has been saved since the the most recent
updating command.
If the workspace requires saving, the system displays the dialog shown in
Figure 27.

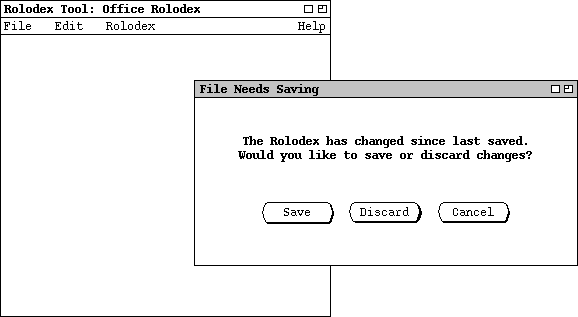

Figure 27: Offer-to-save dialog.
If the Save command executes successfully or the workspace did not
require saving, the system proceeds to execute the New command by
clearing the Rolodex workspace, leaving it empty of any cards. The file
indicator in the window banner is changed to "[no open file]" and the
offer-to-save dialog is closed. Figure 28 shows the result, which is exactly
the same screen as when the Rolodex Tool is initially invoked without a file.

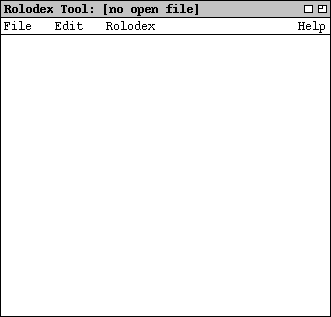

Figure 28: Successful New command.
If the user presses Discard in the offer-to-save dialog of Figure 27, the system proceeds with the New command by clearing the workspace, changing the file indicator banner, and closing the pop-up dialog. All unsaved changes to the Rolodex are lost.
If the user presses Cancel in the offer-to-save dialog, the file is not saved and the New command is cancelled, leaving the state of the Rolodex workspace unchanged. The same result obtains if the user cancels the Save command that is initiated by pressing the Save button in the offer-to-save dialog.
The Open command operates in a similar fashion to New. When the user selects Open from the File menu, the system checks the changed status of the workspace and displays the offer-to-save dialog of Figure 27 if the workspace requires saving.
If the Save command executes successfully or the workspace did not
require saving, the system proceeds to execute the Open command by
displaying the dialog shown in Figure 29

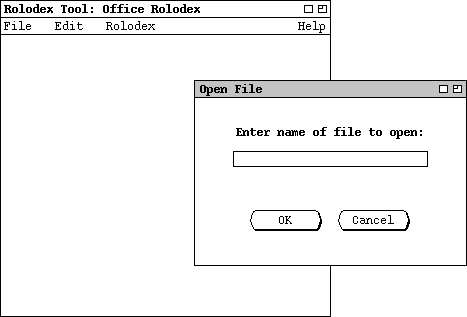

Figure 29: Open dialog.

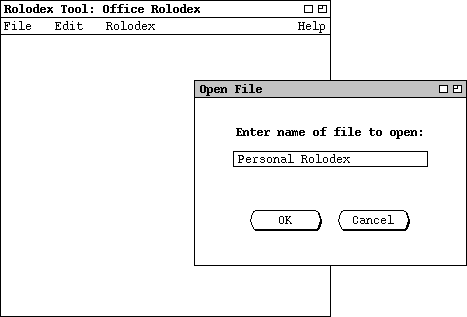

Figure 30: Open dialog filled in.

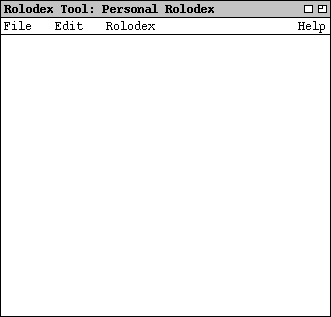

Figure 31: File successfully opened.
The resulting display area for any successful Open command is empty, i.e., it contains the display of no card. Hence, the only display difference between a successful Open command versus a successful New command is the file name in the display banner.
If the user presses Discard in the offer-to-save dialog, the system proceeds with the Open command by displaying the dialog of Figure 29. From this point, the user proceeds as described above, the only difference being that if a file is opened, any unsaved changes to the previously open Rolodex are lost.
If the user presses Cancel in the offer-to-save dialog, the file is not saved and the Open command is cancelled, leaving the state of the Rolodex workspace unchanged. The same result obtains if the user cancels the Save command that is initiated by pressing the Save button in the offer-to-save dialog.
For both the New and Open commands, the precise definition of "requires saving" is based on whether the current state of the Rolodex workspace has changed since the last confirmed execution of a Save command. Specifically, the state of the Rolodex is defined as changed whenever the user executes a confirmed updating command. An updating command is defined as one of the three Rolodex commands Add, Change, or Delete. The execution of an updating command is confirmed when the user presses the OK button in a command confirmation dialog and the command completes execution without error. The confirmation dialog for the Add command is that shown in Figure 5 of Section 2.2. The confirmation dialog for the Change command is that shown in Figures 17 and 20 of Section 2.4. The confirmation dialog for the Delete command is that shown in Figures 23 and 26 of Section 2.5.
This definition of "requires saving" implies the following behaviors for the New and Open commands:
When the user selects the Save command from the File menu, the system first checks if there is a currently open file. To the user, the currently open file is indicated by its name in banner of the Rolodex Tool main display window. If there is no current file, the string "[no open file]" appears in the banner.
If there is an open file, the system responds to the Save command by saving the current contents of the rolodex workspace onto the current file. No further user interaction is required in this case, and the state of the display screen does not change.
If there is no current file when the user selects Save, the system
displays the dialog shown in Figure 32.

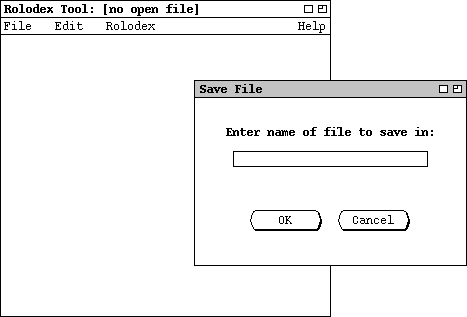

Figure 32: File save dialog, from Save with no open file or from Save As.
Figure 33: Confirmed save.
When the user selects the Save As command from the File menu, the system displays the dialog shown in Figure 32 The user interacts with this dialog in exactly the same manner as described above for the Save command when there is no open file. The results of a successful Save As command are to write the contents of rolodex workspace to the specified file and to change the file name in the display window banner. The data area display is unchanged.
A Rolodex workspace of any size, including zero cards, can be saved. To allow saving an empty workspace, the definition of "requires saving" for Save and Save As is slightly different from the definition of "requires saving" given earlier for New and Open (at the end of Section 2.6.2). Specifically, for Save and Save As, "requires saving" means that the workspace has changed (by the earlier definition) or the workspace is empty and has not yet been saved. By this revised definition, Save and Save As only have an effect if the current workspace requires saving. Otherwise, Save and Save As have no effect.
This revised definition of "requires saving" implies the following specific behaviors for Save and Save As:
Exceptional and error conditions that can arise during execution of the Save and Save As commands are covered, respectively, in Section 2.8.3 on file accessibility and Section 2.9.4 on file access errors.
Details of file-choosing dialogs vary widely in different operating environments. Typically, a file chooser interface is more sophisticated than the simple name-entry dialog shown in Figure 32. Implementors of the Rolodex Tool must provide the file command functionality described in this section via an interface appropriate to the operating environment. In particular, if the operating environment has standards or conventions for how application programs interface with file commands, then implementors must follow those standards or conventions.
When the user selects the Print command from the File menu,
the system prints a list of cards, sorted alphabetically by name. Cards with
the same name are sorted in ascending order by Id field. Figure 34 shows the
result of a Print command for a rolodex containing five cards.
Name: Doe, Jane Id: 555555555 Age: 55 Sex: F Address: 5 Main Street, Centerville Name: Doe, Jane Id: 666666666 Age: 66 Sex: F Address: 6 Main Street, Centerville Name: Doe, Jane Id: 777777777 Age: 77 Sex: F Address: 7 Main Street, Centerville Name: Fisher, Gene Id: 563928591 Age: 47 Sex: M Address: 900 Bear Canyon Lane Name: Smith, John Id: 111111111 Age: 50 Sex: M Address: 1313 Mockingbird Lane
Figure 34: Result of Print command.
Details of file printing vary widely among different operating environments. Such details include printer selection, setup, and other options. Typically, the user interacts with one or more dialogs to specify printing options. Specific details of this interaction are beyond the scope of these requirements. Implementors of the Rolodex Tool must provide the user access to all necessary functionality to accomplish printing successfully in a given operating environment.
The Rolodex Tool provides only the most basic printing facility. To accomplish more sophisticated output formatting, the user may redirect printing output to a file and open the file in a suitable word processor. This assumes that output redirection is an available printing option in the operating environment and that the user has access to a suitable word processor.
When the user selects Exit from the File menu, the system first checks if the rolodex workspace requires saving, based on the first definition of "requires saving" given in Section 2.6.2. If the workspace does require saving, the system displays the offer-to-save dialog of Figure 27. If the Save command executes successfully or the workspace did not require saving, the system proceeds to execute the Exit command by halting the Rolodex Tool program, thereby returning the user to the operating environment from which the Rolodex Tool was invoked.
If the user presses Discard in the offer-to-save dialog, the system proceeds with the Exit command, with any unsaved changes to the rolodex workspace being lost.
If the user presses Cancel in the offer-to-save dialog, the file is not saved and the Exit command is cancelled, leaving the Rolodex Tool still running and the state of the Rolodex workspace unchanged. The same result obtains if the user cancels the Save command that is initiated by pressing the Save button in the offer-to-save dialog.
When the user selects Undo from the Edit menu, the system undoes the effect of the most recently confirmed updating command, or the effect of a previously executed Undo command. As defined at the end of Section 2.6.2. the updating commands are Add, Change, and Delete. For these commands, the precise definition of Undo is that the rolodex workspace is restored to the state that existed immediately prior to the confirmed execution of the command. If no confirmed updating command has been executed since the Rolodex Tool was invoked, Undo has no effect.
If Undo is executed twice in succession, with no intervening confirmed update between the two executions, the effect of the first of the two Undo executions is undone. That is, the state of the rolodex is restored to the state that existed immediately prior to the first Undo. Third and further successive executions of Undo, without an intervening updating command, cause the system to toggle between the state of the workspace with and without the effect of the most recently confirmed update. This behavior means that only a single level of undo is available. That is, only the single most recently executed updating command can be undone.
Undo only applies to the three updating commands and itself, not to any other commands. Specifically, Undo does not apply to:
The Undo command has no effect at all on the display screen. For example, if Undo is executed immediately after an Add command, the contents of the add-card dialog remain on the screen, even though the effect of the Add command has been undone.
Operating systems typically provide a "clipboard" area through which cut and paste editing commands operate. This clipboard holds values that are cut, copied, and pasted in tools such as the Rolodex. Hence, the Rolodex Cut, Copy, and Paste commands operate through such a clipboard.
To execute the Cut or Copy command, the user must first
select a segment of text in a text box. For example, Figure 35 shows the
result of the user having selected all of the text in the Name field
of an Add dialog.

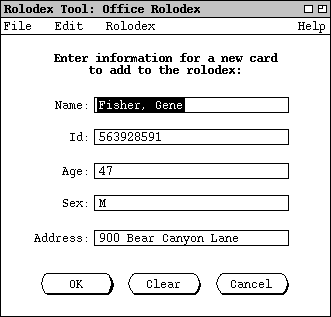

Figure 35: Text selected for Cut or Copy command.

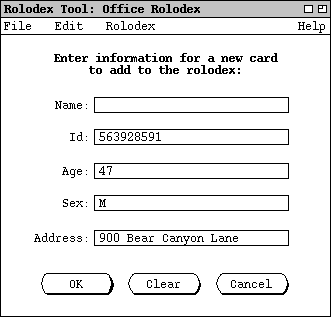

Figure 36: Text cut.
When the user selects the Copy command, the selected text is copied to the clipboard, but is not removed from the display in which it is selected and the text remains selected. For example, if the user selects the Copy command in the context of Figure 35. the selected text is copied to the clipboard and the resulting display is completely unchanged from its state immediately prior to the execution of Copy. I.e., after the copy command, the display appears exactly the same as in Figure 35.
A particular segment of selected text is unselected by selecting another text segment or by single-clicking the mouse anywhere in the Rolodex display. Other environment-specific means of unselecting text may be available.
The Cut command can only be executed in the context of a display where the text boxes are editable, i.e., where the user may type in the text boxes. In the Rolodex Tool, the text boxes in which the user may not type are from the Find command, the Delete command, and the multi-card display from the Change command. These non-editing restrictions are explained, respectively, in Section 2.3 , Section 2.5 , and Section 2.4
In contrast to Cut, the Copy command can be executed in any
dialog in which text boxes appear, including read-only text boxes. For
example, in Figure 37

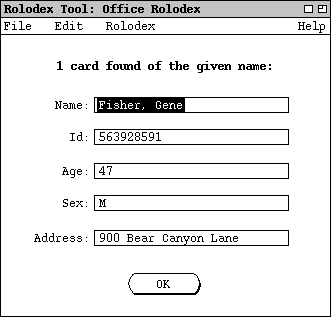

Figure 37: Text selected for Copy only.
To execute the Paste command, the user must first execute a Cut or Copy and then place the typing cursor within some editable text box. After these steps, when the user selects the Paste command from the Edit menu, the text stored in the clipboard is inserted at the point of the typing cursor, as if it had been entered by the user from the keyboard. Pasted text appears in normal font, i.e., it is not highlighted as selected text.
If the user attempts to execute a Cut or Copy command without first selecting text, the commands have no effect. If the user attempts to execute a Paste command without having executed either a Cut or Copy, the Paste command has no effect. The Cut, Copy, and Paste commands operate only on plain text strings within a single displayed text box. In particular, the commands do not apply to a complete card.
The use of the clipboard for communication between the Rolodex Tool and the
outside operating environment depends on the capabilities of the environment.
Specifically, the environment must support the insertion and removal of plain
text to and from the clipboard. If this requirement is met, and the operating
environment permits inter-tool clipboard communication, then plain text copied
to the clipboard from a another tool can be pasted in the Rolodex using
Paste. Similarly, plain text cut or copied in the Rolodex Tool can be
pasted or otherwise accessed as plain text in another tool, via the clipboard.
